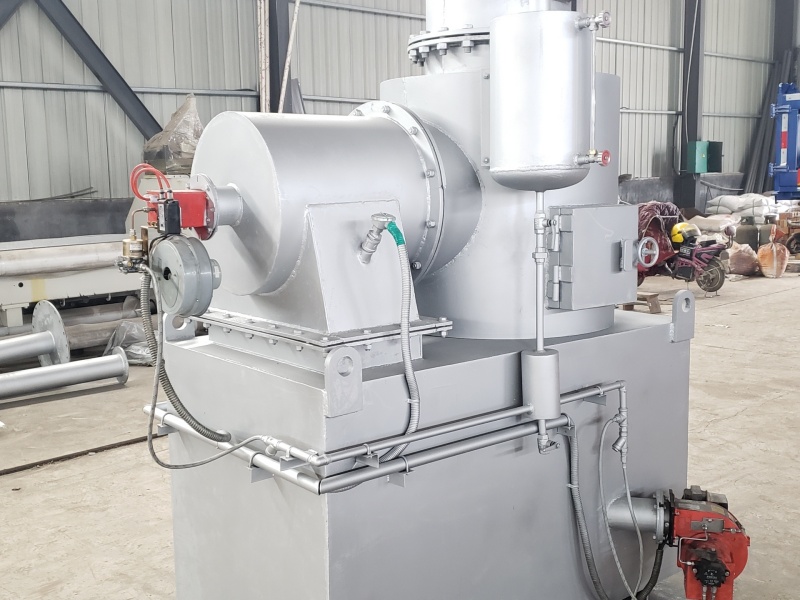

焚烧炉

产品概述

1、适合的焚化物：医疗垃圾、生活垃圾、工业垃圾、动物尸体、残肢、

动物内脏等

2、焚化物热值：混合热值约2800Kcal/Kg

3、炉本体型式：立式圆筒型

4、设备处理量：30-500kg/h次

5、点火方式：自动点火

6、手动出灰，手动投料辅助燃料：液化气（低位热值10495Kcal/kg)

7、炉内压力：采用负压设计，不逆火，-3--10mmH2O柱

Route Process Flow

The garbage is fed into the furnace body in batches and quantities manually, and is ignited and burned by the ignition temperature-controlled combustion machine. According to the principle of combustion three T (temperature, time, eddy current), it is fully oxidized, pyrolyzed, and burned in the combustion chamber of the furnace body, resulting in smoke

The gas enters the secondary combustion chamber through high-temperature combustion, and the flue gas stays in the combustion chamber for 2 seconds again, so that the harmful gas can be completely burned at high temperature, and harmful germs can be fully decomposed, and then harmful substances such as dust and acidic gas can be removed through the equipment.

No odor, no foul odor, no smoke effect, then the standard clean gas is discharged into the atmosphere through the chimney, and the ashes generated after combustion are manually removed, screened, transferred and buried.

设备装置

炉本体燃烧室、二次燃烧室、一次燃烧器、二次燃烧器、鼓风机、集尘

器、防雨配电柜、烟道、风道、油槽、烟囱。

Equipment

Furnace body combustion chamber, secondary combustion chamber, primary burner, secondary burner, blower, dust collection

Equipment, rain-proof distribution cabinet, flue, air duct, oil tank, chimney.

工艺流程

垃圾废弃物，经过人工分批定量送入炉本体，由点火温控燃烧机点火燃烧，根据燃烧三T(温度、时间、涡流)原则，在炉本体燃烧室内充分氧化、热解、燃烧，产生之烟

气进入二次燃烧室通过高温燃烧，再次在燃烧室中烟气停留2秒钟，使之有害气体在高温下完全烧烬，充分分解有害病菌，再经过设备除去粉尘及酸性气体等有害物质，排放时达到

无异味、无恶臭、无烟之效果，然后将达标的洁净气体经烟囱排放至大气中，燃烧后产生之灰烬由人工取出、筛分、转移并掩埋。

Process flow

The garbage is fed into the furnace body in batches and quantities manually, and is ignited and burned by the ignition temperature-controlled combustion machine. According to the principle of combustion three T (temperature, time, eddy current), it is fully oxidized, pyrolyzed, and burned in the combustion chamber of the furnace body, resulting in smoke

The gas enters the secondary combustion chamber through high-temperature combustion, and the flue gas stays in the combustion chamber for 2 seconds again, so that the harmful gas can be completely burned at high temperature, and harmful germs can be fully decomposed, and then harmful substances such as dust and acidic gas can be removed through the equipment.

No odor, no foul odor, no smoke effect, then the standard clean gas is discharged into the atmosphere through the chimney, and the ashes generated after combustion are manually removed, screened, transferred and buried.
